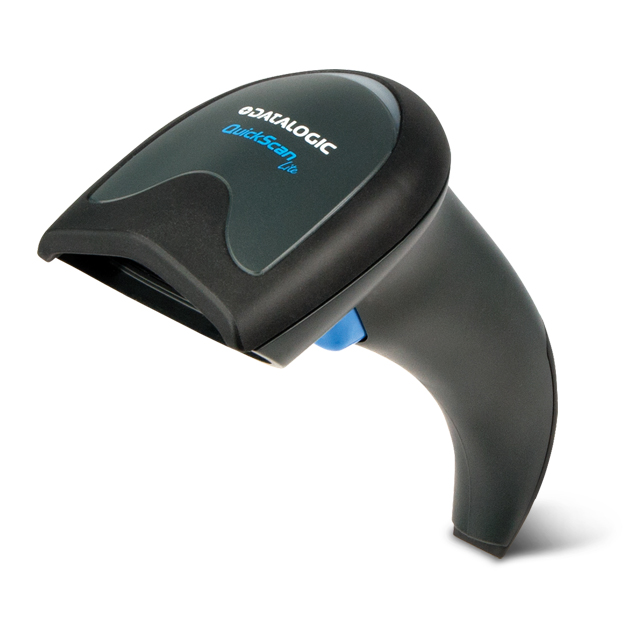

The QuickScan™ Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/ bill processing and banking/finance environments.
The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.
The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options.
A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a ‘tiltable head' for various angle settings.
 |
 |
 |
 |
| DECODING CAPABILITY | |
|
1D / LINEAR CODES POSTAL CODES STACKED CODES |
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. China Post EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional |
| ELECTRICAL | |
| CURRENT |
Operating (Typical): <180 mA @ 5 VDC Standby/Idle (Typical): <25 mA @ 5 VDC Sleep Mode: USB Suspend (QW2120): <2 mA @ 5 VDC Low Power Mode (QW2170): <6 mA @ 5 VDC |
| INPUT VOLTAGE | 5 VDC +/- 0.5 V |
| ENVIRONMENTAL | |
| AMBIENT LIGHT | 120,000 lux |
| DROP RESISTANCE | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| ESD PROTECTION (AIR DISCHARGE) | 16 kV |
| HUMIDITY (NON-CONDENSING) | 5 - 95% |
| PARTICULATE AND WATER SEALING | IP42 |
| TEMPERATURE |
Operating: 0 to 50 °C / 32 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| INTERFACES | |
| INTERFACES |
QW2170-BK: RS-232 / Keyboard Wedge QW2120-BK: USB |
| PHYSICAL CHARACTERISTICS | |
| COLORS AVAILABLE | Black |
| DIMENSIONS | 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in |
| WEIGHT | 119.0 g / 4.2 oz |
| READING PERFORMANCE | |
| LIGHT SOURCE | Red LED 610-650 nm |
| PRINT CONTRAST RATIO (MINIMUM) | 25% |
| READ RATE (MAXIMUM) | 400 reads/sec. |
| READING ANGLE | Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| READING INDICATORS | Beeper (Adjustable Tone); Datalogic ‘Green Spot' Good Read Feedback; Good Read LED; Good Transmission |
| RESOLUTION (MAXIMUM) | 0.102 mm / 4 mils (1D Codes) |
| FIELD OF VIEW | 56° +/- 2° |
| READING RANGES | |
| TYPICAL DEPTH OF FIELD |
Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent.
|
| SAFETY & REGULATORY | |
| AGENCY APPROVALS |
The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a list of certifications. |
| ENVIRONMENTAL COMPLIANCE | Complies to China RoHS; Complies to EU RoHS |
| UTILITIES | |
| DATALOGIC ALADDIN™ | Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JAVAPOS |
JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at not charge. |
| REMOTE HOST DOWNLOAD | Lowers service costs and improves operations (-RM models only) |
| WARRANTY | |
| WARRANTY | 3-Year Factory Warranty |
