Smart TV Box KI PRO DVB S

Model

KI PRO

System operacyjny

Android 7.1

Procesor

Amlogic S905D

CPU

Quad Core Cortex A53

GPU

Mali-450

RAM

2GB RAM

Typ RAM

DDR4

ROM

16GB ROM

Maksymalna pojemność rozszerzenia

32GB

Maksymalna pojemność zewnętrznych dysków twardych

32GB

Cechy TV Boxa

WiFi

2.4G/5G, Wsparcie IEEE 802.11 b/g/n/ac

Format dekodowania

H.265

Format wideo

ASF,AVI,DAT,FLV,ISO,MKV,MPEG,MPG,RM,RMVB,TS,VOB,WMV

Format audio

AAC,APE,DDP,FLAC,HD,MP3,OGG,TrueHD,WAV,WMA

Format zdjęć

BMP,JPEG,PNG,TIFF

Obsługa dźwięku przestrzennego 5.1

Tak

Bluetooth

Bluetooth 4.1

Zasilanie

Adapter ładowania

Interfejs

DC 5V, Port Zasilania DC, HD TV, LAN, Optyczne, karta TF, USB 2.0

Język

Wielojęzyczny

Pobieranie energii

8W

Prędkość portu RJ45

1000M

Bit systemu

64 Bit

Model
Content
Name

KI PLUS

KII PRO

KI PRO

KIll PRO

CPU

Amlogic S905 Quad-core 64-bit

Amlogic S905 Quad-core 64-bit

Amlogic S905D Quad-core 64-bit

Amlogic S912
*Octa core 64 bit

OS

Android 5.1.1

Android 5.1.1

*Android 7.1.1

*Android 7.1.1

OS Differences:
*KI Plus&KII Pro are only supporting Android 5.1.1
*KI Pro&KIII Pro are supporting to update to the latest Android System and OEM project is supporting to develop Linux System.

Video Decoder

H265 4K @ 60fps 10bits,
H264 4K @ 30fps
H264 1080P@60fps,
AVS+ 1080P @ 60fps

H265 4K @ 60fps 10bits,
H264 4K @ 30fps
H264 1080P@60fps,
AVS+ 1080P @ 60fps

H265 4K @ 60fps 10bits,
*VP9 profile 2
H264 4K @ 30fps,
AVS+ 1080P @ 60fps

H265 4K @ 60fps1 Obits, *VP9 profile 2 H264 4K @ 30fps,
AVS+ 1080P @ 60fps

Differences:

*S905D and S912 are supporting VP9 Profile.

TV Output

4K2K,HDMI2.0,CVBS

4K2K,HDMI2.0,CVBS

4K2K,HDMI2.0,CVBS

4K2K,HDMI2.0,CVBS

Memory

DDRIII 1GB

DDRIII 2GB

*DDR4 2GB

DDRIII 3GB

Flash

8GB

16GB

16GB

16GB

Would device supports to have 32G flash?

*For OEM order, it is accepted to customize flash as 4GB, 8GB, 16GB, 32GB.

Wifi

Wifi: 2.4G

Wifi: 2.4G+5G 11ac
Bluetooth 4.1

Wifi: 2.4G+5G 11ac
Bluetooth 4.1

Wifi: 2.4G+5G 11ac Bluetooth 4.1

Ethernet

10 M/1 OOM

10M/100M

10M/100M/1000M

10M/100M/1000M

DRM

support: Google Widevine Level 3 Optional: Microsoft Playready, Verimatrix

support: Google Widevine Level 3 Optional: Microsoft Playready, Verimatrix

*support: Google Widevine Level 1
& Level 3
Optional: Microsoft Playready, Verimatrix

*support: Google Widevine Level 1 & Level 3
Optional: Microsoft Playready, Verimatrix

HDCP

N/A

N/A

*1.4

*1.4

HDR

N/A

N/A

HDR10/HLG HDR

HDR10/HLG HDR

DTV

DVB-T2&S2 COMBO

DVB-T2&S2 COMBO

*DVB-S2&DVB-T2&DVB-C COMBO

*DVB-S2&DVB-T2&DVB-C COMBO

Would device support other DVB standards?

*For OEM project, YES. And DVB-T2/DVB-S2/ISDB-T/DTMB/ATSC is optional IP Streaming Output.

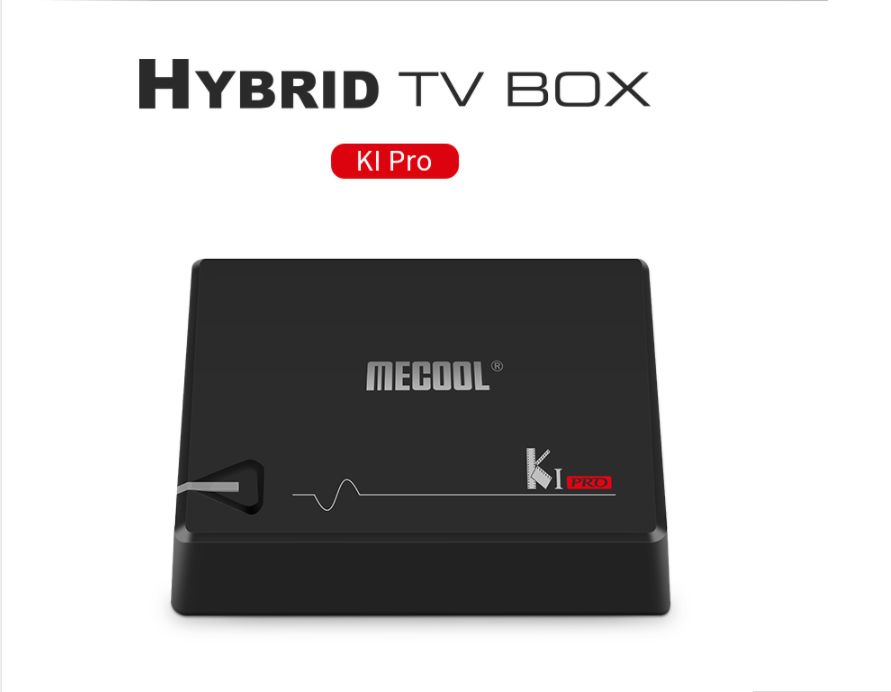

Product picture
